PALLET SLEEVE BOX
Pallet Sleeve Box
(PP Honeycomb Pallet Sleeve)
A pallet sleeve box is a reusable bulk packaging system made from PP honeycomb board, designed for efficient storage and transportation of industrial goods. Polyfavo manufactures pallet sleeve boxes for logistics, automotive supply chains, and warehouse distribution systems.
| Categories | Pallet Sleeve Box |
|---|---|
| Brand | POLYFAVO |
| Provided Service | Screen Printing, loading door opening, hook & loop, edge sealing, lable pocket, lock system etc |
| Custom Work | Color, size, weight, packing, processing |
| Grade | Anti-static etc |
| Main Color | Pallet sleeve: grey; lid & pallet: black (Other color needs MOQ) |
| Main Application | logistics, packaging, storage, turn over |
| FOB port | Shanghai, China |
Description
Pallet Sleeve Container from POLYFAVO
Polyfavo pallet sleeve boxes consist of a foldable PP honeycomb sleeve, plastic HDPE pallet, and lid. Compared to wooden crates or cardboard boxes, they offer longer service life, lower total cost of ownership, and improved hygiene performance. The structure is lightweight yet strong, making it suitable for repeated closed-loop logistics and save 70%-80% volume.
These pallet sleeve packaging systems are commonly used for automotive parts, industrial components, and export logistics, and can be customized in size, load capacity, color, and reinforcement structure.

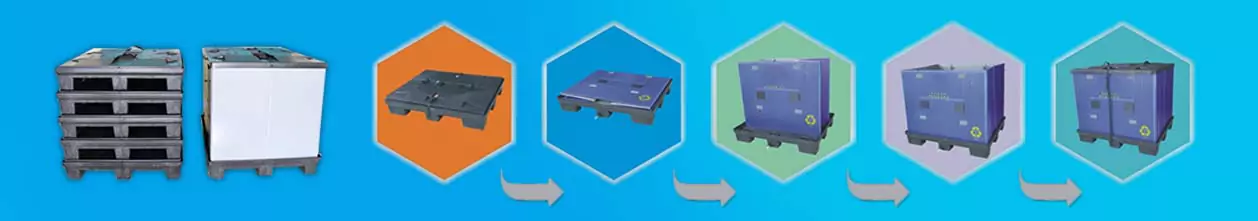

HOW TO USE PALLET SLEEVE BOX
HDPE PALLET
HDPE pallets are available in three types: die casting, Injection and blow molding. Injection pallet can load the MAX weight for pallet box with the highest unit cost. Die casting HDPE pallets offer strength and rigidity, while blow molding HDPE pallets provide flexibility and durability for various size storage and transportation needs with the lowest unit cost. All can be added plastic yellow locks or belts.
Die Casting Pallet
Injection Pallet
Blow Molding Pallet
HDPE LID
The HDPE lid for the pallet gaylord box comes in three types also: Injection, die casting and blow molding. For blow molding type, there are pointed flat and channel surface options, it ensures secure and versatile closure for efficient storage and transport. All can be added plastic yellow locks or belts.
Injection Lid
Blow Molding Lid - Flat
Blow Molding Lid - Channel
Die Castign Lid
POLYFAVO SLEEVE
Pallet sleeves made from PP honeycomb panels or X PP Corrugated Sheet are a versatile and cost-effective solution for streamlined storage and transportation. With a wide range of design options available, they offer flexibility to meet diverse packaging needs efficiently.
M Fold Sleeve
Z Fold Sleeve
Sleeve With Fabric Pocket
Sleeve with Door
Sleeve With Holes
H Profile Sleeve
CUSTOM SERVICE
POLYFAVO provides custom solutions for plastic gaylord containers, including features like Velcro closures, printing options, locks, H-profiles, label pockets, conductive properties, corrugated dividers, thermoformed separators and anti-static capabilities.
Lable Pocket
Velcro Hook and Loop
Logo Screen Printing
Steel Structure Pallet Box
Belt Lashing Systems
Plastic Locks
Flat Edge Sealing
Round Edge Sealing
Pallet Dividers
PALLET AND LID SIZE
We provide a variety of plastic pallet containers in different sizes. Additionally, we offer custom solutions tailored to meet your specific requirements, ensuring optimal functionality and efficiency.
Below size are blow molding type pallet and lid for pallet sleeve containers.
BLOW MOLDING TYPE
| Model | Pallet Outer Diameter | Pallet Inner Diameter | Pallet Weight | Lid Weight | STACKING LAYER | LOADING WEIGHT |
| BM8060 | 800*600 | 740*540 | 7kg | 5kg | 1+2 | 300KGS |
| BM1110 | 1100*1000 | 1050*950 | 10kg | 7.5kg | 1+2 | 300KGS |
| BM1111 | 1100*1100 | 1055*1055 | 10kg | 8kg | 1+2 | 300KGS |
| BM1198 | 1150*985 | 1106*940 | 10kg | 9kg | 1+2 | 300KGS |
| BM1515 | 1150*1150 | 1105*1105 | 10.5kg | 8.5kg | 1+2 | 300KGS |
| BM1280 | 1200*800 | 1160*760 | 10kg | 9kg | 1+2 | 300KGS |
| BM1210 | 1200*1000 | 1140*940 | 11kg | 10kg | 1+2 | 300KGS |
| BM1211 | 1220*1150 | 1170*1105 | 11kg | 9kg | 1+2 | 300KGS |
| BM1210-3 | 1230*1030 | 1170*970 | 11.5kg | 8.5kg | 1+2 | 300KGS |
| BM1311 | 1350*1150 | 1280*1070 | 14kg | 12kg | 1+2 | 300KGS |
| BM1411 | 1470*1150 | 1400*1070 | 15kg | 13kg | 1+2 | 300KGS |
| BM1611 | 1600*1150 | 1520*1080 | 20kg | 13kg | 1+2 | 300KGS |
| BM1811 | 1840×1130 | 1540*1080 | 23kg | 12kg | 1+2 | 300KGS |
| BM2011 | 2070*1150 | 2000*1080 | 31kg | 17kg | 1+2 | 300KGS |
| 1.Pallet and Lid weight is for your reference. Weight changes for different loading requirements. | ||||||
| 2. 3 runners can be added on pallet. | ||||||
| 3. Steel Tube can be added in pallet and lid for higher loading weight. | ||||||
INJECTION TYPE
1000
| Model | Pallet Outer Diameter | Pallet Inner Diameter | FOLDING HEIGHT | LOADING WEIGHT | STACKING LAYERS | REMARK |
| ZS1210 | 1200*1000 | 1130*930 | 240 | 500 | 5 | 9 FEET/3 RUNNERS |
| ZS1280 | 1200*800 | 1130*730 | 240 | 500 | 5 | 9 FEET/3 RUNNERS |
| ZS1198 | 1140*980 | 1070*910 | 240 | 500 | 5 | 9 FEET/3 RUNNERS |
| ZS1111 | 1140*1140 | 1070*1070 | 240 | 500 | 5 | 9 FEET/3 RUNNERS |
| 1.Lashing Belts and handle belts can be added | ||||||
| 2. 9 feets/3 runners are for options. | ||||||
| 3. Steel Tube can be added in pallet and lid for higher loading weight. | ||||||
DIE CASTING TYPE
| Model | Pallet Outer Diameter | Pallet Inner Diameter | Folding Height | Max Loading | Max Stacking | Pallet Type |
| YZ1210 | 1200*1000 | 1135*935 | 220 | 500 | 1500 | 9 feet |
| YZ1280 | 1200*800 | 1125*725 | 230 | 500 | 1500 | 9 feet |
| YZ1198 | 1455*1135 | 1375*1050 | 237 | 500 | 1500 | 9 feet |
| YZ1198 | 1135*730 | 1055*650 | 220 | 400 | 1500 | 6 feet |
| YZ1198 | 1140*980 | 1060*900 | 220 | 700 | 1500 | 9 feet |
| YZ1198 | 1140*1140 | 1060*1060 | 230 | 700 | 1500 | 9 feet |
| YZ1198 | 1140*600 | 1065*520 | 220 | 400 | 1500 | 9 feet |
| YZ1198 | 815*615 | 740*535 | 230 | 400 | 1500 | 6 feet |
| YZ1198 | 1770*1150 | 1695*1075 | 250 | 500 | 1500 | 9 feet |
| 1. Pallet sleeve height is customed. | ||||||
| 2. Lashing Belts and handle belts can be added | ||||||
| 3. Not all products are showed here. Other sizes, please contact us directly | ||||||
